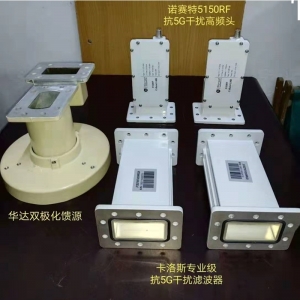

诺赛特5150RF高频头+卡洛斯专业级抗5G干扰波波器+华达馈源盘专业级组合
单诺赛特5150RF高频头+单个卡洛斯专业级抗5G干扰波波器+华达馈源盘=1700元
Norsat-5150R, C-Band PLL LNB是目前市场占有率最高的能够按捺5G基站信号关于卫星地球站C波段搅扰的单极化高频头，功能可靠安稳，增益高
产品技术数据：
| KEY SPECIFICATIONS | |
| Product Family | 5150R Series |
| Band | C-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | +/- 150 KHz |
| Noise Figure | 25 K |
| Input Frequency - Band 1 | C-Band: 3.70 - 4.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 5.15 GHz |
| Phase Noise @ 1KHz offset | -65 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 62 dB typ, 55 dB min, 70 dB max |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 2.5 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 250 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G |
| RF Output Connector | F-75 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40°C to +60°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 190 x 115 x 78 mm |
| Weight | 580 g |
诺赛特Norsat5150RF抗5G干扰高频头C波段锁相环单极化高频头工程电台降频器
